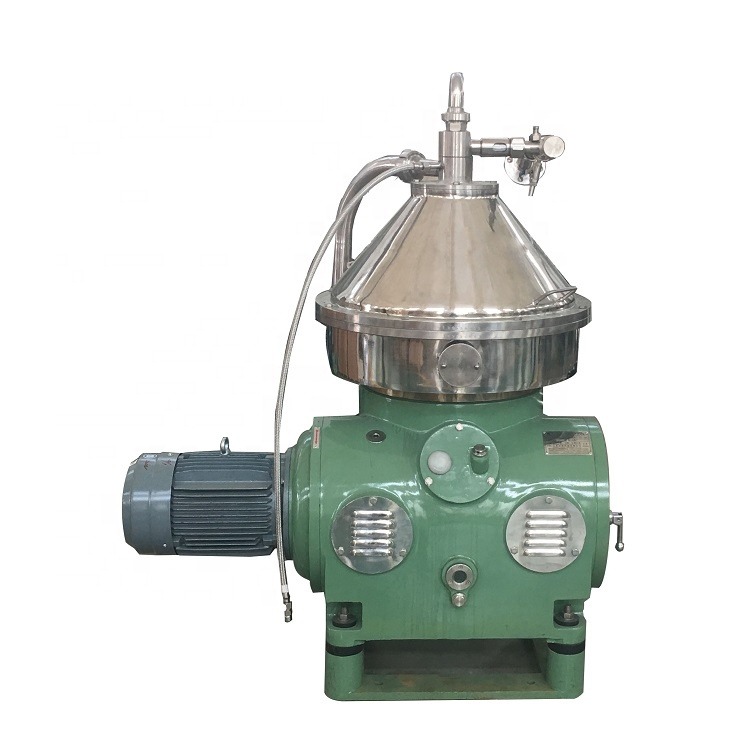

Automatic Operate Centrifuge Machine Latex Concentrating Stack Disc Centrifuge Separator
The disc separator is specially used for the two-phase and three- phase separation. The two-phase separation is to separate the suspended solid from liquid or two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.
The materials are transmitted to the heart parts of this machine, the inside of the drum. Under the action of strong centrifugal force, the materials (mixed liquid) pass through the intervals of a group of disk pieces bundles, and then through the neutral hole of the disk pieces as the interface, the liquid with higher density (heavy phase) moves outward the neutral hole along the disk pieces, among which, the heavy residues accumulate in the sediment area, and the heavy phase flows to the large centripetal pump. The liquid with lower density (light phase) moves inward and upward along the disk pieces wall and gathers in the small centripetal pump. The heavy phase and light phase output by the large centripetal pump and small centripetal pump respectively.
The bowl rotates at a high speed around the main axis, driven by a motor through hydraulic coupling and screw gear pair. Liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. With the action of centrifugal force , heavy liquid flows along the inner wall of discs to the inner wall of the bowl, then it will be discharged by the heavy liquid pump, the light liquid will be discharged by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet,the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged by the sliding bowl through the sediment outlet.
This automatic discharging separator has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise and fine separating effect. Centripetal pump system designed by our professional designer has the traits as stable outlet pressure, large regulating sphere and operating easily. It has professional automatic domination case with safety protection device and advanced automatic vibrating testing instrument which can view vibrating number at any time. We can make the best separating and discharging by adjusting separating parameter directly at the screen.
Catagory:
·DHNY Series milk centrifuge separator
Dairy clarifying ,separation of milk and cream, syrup(orange juice, apple juice etc.), vegetable juice, tea drinks, coffee, beer and other industries.
·DHYZ Series oil centrifuge separator
This machines are widely used in degum, de-soap and water washing technology in vegetable oil refinery. It can also be used for refinery of animal oil and mineral oil. and liquid-liquid, liquid-solid separation of light industry, chemical industry, pharmaceutical and food industry.
- -Biodiesel centrifuge separator
The machine is widely used in degumming, desoponificating, washing, glycerine separating and other techniques in biodiesel.
DH mineral oil separator is mainly used in separating mineral oil.
DH pigment separator is extensively used in extracting pigment and in separating similar materials.
Product picture:
LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of pharmaceutical, food, chemical machinery. Our products include tubular centrifuge, filter centrifuge, decanter centrifuge, disc separator, sedimentation centrifuge etc. As an experienced team, we also help our customer to design and supply the food and drug production line, adopts ISO9001 system management module and manufactures according to GMP and CE standards. Mainly export to Southeast Asia, North America, Africa, Europe etc.
Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.
Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
l 1. Each machine is manufactured by professional experienced staff.
l 2. 12 months warranty + 100% QC inspection Before Shipment.
l 3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
l 4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
