Home /Products/Centrifugal Oil Water Separator/Marine Oil KYDB203SD-21Marine /Land Use Mineral Oil Water Disc Centrifuge Separator for Lubricant, Fuel, Diesel Fuel Clarifying

Marine Oil KYDB203SD-21Marine /Land Use Mineral Oil Water Disc Centrifuge Separator for Lubricant, Fuel, Diesel Fuel Clarifying

1 Set
MOQ
$25,000.00(>=1 Sets)
Price
Marine Oil KYDB203SD-21Marine /Land Use Mineral Oil Water Disc Centrifuge Separator for Lubricant, Fuel, Diesel Fuel Clarifying
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Marine Oil
Showroom Location: Peru, Mexico, Kenya
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 2 Years
Core Components: Gearbox, Gear, Bearing, PLC, Differential
Material: SUS304/SS316L/2205
Weight: 560KGS
Size: 1090X1100X1200MM
Power: 4.0KW, 4.0kw (ABB/SIEMENS)
Warranty: 2 Years
Productivity: 30500L/Hour
Weight (KG): 560 Kg
Product Name: Marine Oil Disc Separator
Brand: HENAN SOLID
Model: KYDB203SD-21
Capacity: 2000L/H
Rotation Speed: 8400
Separation Factor: 10000
Power Supply: 380V/50HZ/3-PH
Start Type: Frequency Startup
Dimensions&Weight: 1090X1100X1200MM /560kgs
Basic Infomation
Model Number: KYDB203SD-21
Payment & Shipping Terms
Packaging Details: All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases.
Supply Ability: 200 Set/Sets per Year
Product Description

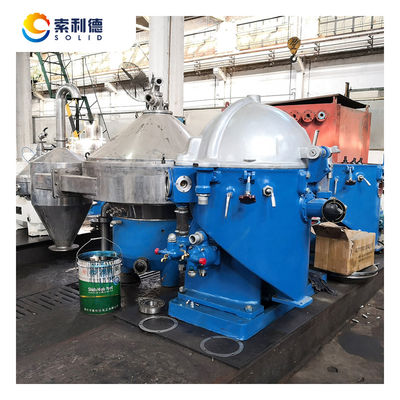

KYDB Marine Oil Separator

(Special Design for Marine Oil Separation Purification


KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.
The design, manufacture and inspect are accord with GB/T5745-2002 << Marine Disk Separator>>. Stable operation, the vibration is much lower than the national standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.

Configuration description for SEPARATION UNIT
* Applicable material:viscosity 380cst-700cst @50℃,density (1010kg/m3) heavy fuel oil;also lubricating oil,diesel etc * Adopt none gravity disc operation method,the complete module meets the CSSC standards. * Moisture sensor,to ensure the final oil quality. * Complete hydraulic drum structure,slag discharge thoroughly. * High rotation speed to ensure better separation effect. * Low energy consumption and light weight * Reliable transmission structure, simpler mechanical structure * PLC program control,Chinese and English operation interface,automatic control of the slag discharge process of the separator, manual operation, and panel setting parameters. With high and low temperature, high and low pressure, motor overload, oil pump overload alarm.Automatically switch oil circuit after alarm, and provide external passive alarm contact

KYDB205SD-21 Vertical Separator

KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil,heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.

KYDB207SD-21 Vertical Separator

KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil,heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.
Specification
MODEL
KYDB203SD-21
KYDB205SD-21
KYDB207SD-21
Brand
HENAN SOLID
HENAN SOLID
HENAN SOLID
Capacity
2000L/H
3500L/H
6000L/H
Design Speed
8400
5790
7800
Separation Factor
11200
10000
10000
Material
304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410)

SUS304
Power
4.0KW
7.5KW
15KW
Start Mode
Frequency Startup
Frequency Startup
Frequency Startup
Discharge Model
Self-cleaning
Self-cleaning
Self-cleaning
Dimension L*W*H
1090MMX1100MMX1200MM
1090MMX1100MMX1305MM
1200MMX1100MMX1350MM
Weight
560KGS
690KGS
826KGS
Packing & Delivery
Process Drawing
