Features

Specifications

Condition: New

Efficiency: Good

Construction: Cartridge Filter

Porosity: 3um

Dimension(L*W*H): Height/475mm

Weight: 3.4kg

Warranty: Unavailable

After-sales Service Provided: Online Support, Engineers Available To Service Machinery Overseas

Certification: ISO, CE, IAF & TuV

Air Capacity: 6.8Nm3/min

Air Connection Diameter: G1.5"

Tube Diameter: 110mm

Inlet Air Temperture: 5â„ƒ~65â„ƒ

Life Length: 8000hours

Working Pressure: 0.6-1.0MPa

Initial Pressure Drop: â‰¤0.003MPa

Function: Separating Between Air And Water, Oil

Efficiency Of Removing Water: â‰¥99%

Basic Infomation

Certification: ISO, CE, IAF & TuV

Payment & Shipping Terms

Packaging Details: Wooden case for oil water separator

Supply Ability: 2000 Piece/Pieces per Month

Product Description

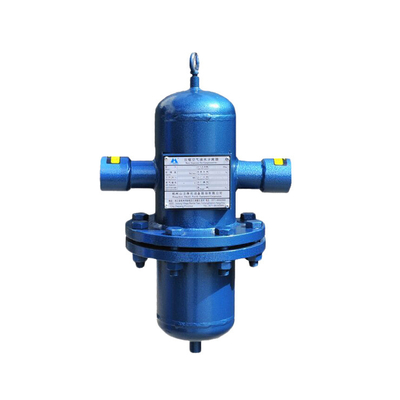

High Efficiency Fuel Oil Water Separator

Product Description

Standard Working Condition:

Inlet Air Pressure	0.6~1.0MPa
Inlet Air Temperature	5°C~65°C
Initial Pressure Drop	≤0.003MPa
Efficiency of Removing Water	≥99%

Note: Any technical parameter can be changed according to your requirement.

Draft:

Technical Specification:

SAYF-1	1.2	G1"	316	Φ85	1.9
SAYF-2	2.4	G1"	316	Φ85	1.9
SAYF-3	3.6	G1"	316	Φ85	1.9
SAYF-4.5	5	G1 1/2"	475	Φ110	3.4
SAYF-6	6.8	G1 1/2"	475	Φ110	3.4
SAYF-8	8.5	G2"	767	Φ120	5.3
SAYF-10	10.9	G2"	767	Φ120	5.3
SAYF-12	12.8	G2"	767	Φ120	5.3
SAYF-15	16	DN65	705	Φ159	42
SAYF-20	22	DN65	690	Φ219	60
SAYF-25	26.8	DN80	860	Φ219	68
SAYF-30	32	DN80	860	Φ219	68
SAYF-40	43.5	DN100	970	Φ273	107
SAYF-50	53	DN100	1070	Φ325	131
SAYF-60	67	DN125	1110	Φ325	136
SAYF-80	90	DN125	1195	Φ325	141
SAYF-100	110	DN150	1370	Φ377	183
SAYF-120	130	DN150	1390	Φ412	190
SAYF-150	160	DN200	1580	Φ462	261
SAYF-200	210	DN200	1790	Φ562	362
SAYF-250	250	DN250	2065	Φ612	438
SAYF-300	300	DN250	2150	Φ662	491
SAYF-350	350	DN300	2230	Φ662	524
SAYF-400	400	DN300	2240	Φ712	571
SAYF-450	450	DN350	2490	Φ812	741
SAYF-500	500	DN350	2500	Φ812	751

Note: Customer-made servie is available.
