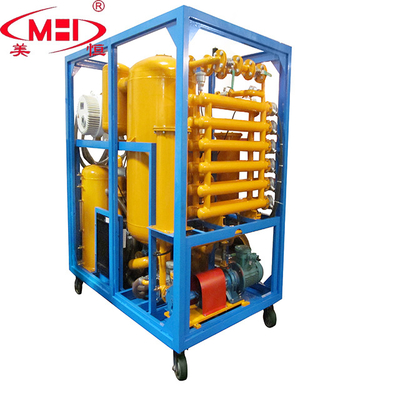

Chongqing Meiheng Oil Purifier Used Transformer Oil Filtration Plants Insulation Oil Filter Machine
Product Information:
ZLA series is widely used in purification of various types of insulating oil , especially the deep purification treatment of high-voltage transformer oil , high-grade new oil and imported oil . While keeping all the advantages of ZL series vacuum oil purifier , ZLA has additional lobe-type vacuum pressure increasing system , second time highly vacuum separation system . It can be used for field operation in over 110KV transformer station , especially in high-latitude areas.
Technical Parameter:
|
Item |
Unit |
ZLA-30 |
ZLA-50 |
ZLA-80 |
ZLA-100 |
ZLA-150 |
ZLA-200 |
ZLA-300 |
|
|
Flow rate |
L/min |
30 |
50 |
80 |
100 |
150 |
200 |
300 |
|
|
Vacuum Range |
MPa |
-0.07~-0.099 |
|||||||
|
Working pressure |
MPa |
≤0.5 |
|||||||
|
Working noise |
dB(A) |
60 |
65 |
70 |
75 |
78 |
80 |
85 |
|
|
Heating Power |
KW |
30 |
36 |
42 |
48 |
60 |
78 |
90 |
|
|
Total Power |
KW |
36 |
44 |
51 |
53 |
72 |
87 |
110 |
|
|
Net Weight |
Kg |
650 |
850 |
900 |
1100 |
1400 |
1800 |
2000 |
|
|
Overall Dimensions |
L |
mm |
1200 |
1250 |
1500 |
1600 |
1700 |
1750 |
1800 |
|
W |
mm |
920 |
950 |
1100 |
1150 |
1200 |
1250 |
1300 |
|
|
H |
mm |
1450 |
1500 |
1700 |
1800 |
1800 |
1900 |
2000 |
|
1. Double-stage, high vacuum can highly effectively remove the water in the oil. It can improve the breakdown voltage, the amount of degassing, the degree of dryness and the effect of one-time filtration.
2. Precise filtration system, multi-stage filtration can remove particulate impurities in the oil. High-quality filter medium has strong mechanical strength, high ability of containing pollution, corrosion proof and wear well.
3. Highly effective degassing and dewatering system that use large area three-dimensional flash vaporization technology to remove the water and gas in the oil.
4. Advanced pressure protection, infrared liquid level control system and chain control system for electric heating make the operation safe.
5. It can dry electric machines and vacuum add oil to transformers.
| 1.Truckle | 2.Heater | 3.Vacuum Separator | 4.Bypass-Valve | 5.Oil Supply Solenoid Valve | 6.Oil Pump |
| 7.Oil Pump Mechanical | 8.Outlet Valve | 9.Sampling Valve | 10.Oil Inlet Valve | 11.1 st -Stage Filter | 12.The Check Valve |
| 13.Fine Filter | 14.2 st -Stage Filter | 15.Observation Mirror | 16. Vacuum Gauge | 17.Condenser | 18.Manual Air Mixing Valve |
| 19.Single Suction Valve | 20.Warning Light | 21.Electronic Connecting Pressure Gauge | 22.Pressure Controller | 23.Control Button | 24.Control Cabinet |
| 25.Vacuum Pump | 26.Roots pump | 27.Bumper | 28.Level Float Switch | 29.Vacuum Valve | 30.Isolating Valve |
| 31.Set Water Tank |
New product industrial hydraulic New product high performance high performance Exquisite technical waste engine
oil filter filtering machine with good service vacuum insulating fluids oil filter with good service vertical oil filter machine with high
Chongqing Meiheng Electric & Machinery Co.,Ltd located in Geleshan, Shapingba District of Chongqing.Is a hi-techenterprise for researching,designing,producing and developing oil filtering equipments,water processing devices and complete equipments for chemical dosing.
Mehiheng company learning advanced oil and water processing technologies from home and abroad.In order to meet various requirements and features of industries,more than 25 series 300 models of different styles of products.Have developed,making very important positive contribution to energy-saving,reducing consumption,security,and environment protection for the users.
Meiheng sees quality as its life and keeps innovating.Meiheng will strictly abide ISO9001 quality management system,starting from each equipment and each service to make our products first grade while keeping Meiheng a leading enterprise.
Packaging Details:wooden case
Delivery Time:within 30 working days after order confirmation
After-sales Services:
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Q: Do you have your own factory?
A: Yes,we have own factory.
Q: How can i get the exact price?
A: After the final solution is confirmed we will give the best price.
Q: Which port do you use to export?
A: We use Shanghai port or according to your opinion.
Q: What is the form of payment?
A: We use TT,e-Checking,etc.
