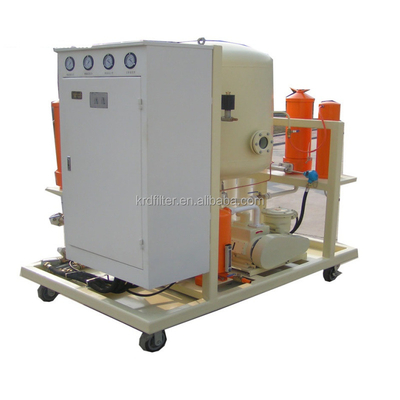

Hydraulic Oil Vacuum Hydraulic Oil Machine Waste Oil Purifier Machine Transformer Oil Purifier Filter Plants

Based on the foreign oil purification device technology, our company developed a new generation of ZATA multi-functional vacuum oil purifier equipment.

Controlled by the PLC, easy to operate, fast, ZATA multi-functional vacuum oil purifier machine can effectively degas, dehydrate, emulsion break, disacidify, clean mechanical impurities, so that it make oil meet the standard. ZAKA vacuum oil purifier machine can be widely used in turbine oil in powder system , transformer oil, phosphate fuel oil, oil purification in metallurgical, petrochemical, machinery, aviation industry.

Vacuum dehydration oil purifier machine is a set equipment of fine filtration and high efficient dehydration. It can remove the particles in the oil, emulsified water and free water. Vacuum oil purifier machine consists of particle filtration system, vacuum dewatering system, heating system, oil drain system and automatic control system.

Vacuum dehydration oil purifier machine is a set equipment of fine filtration and high efficient dehydration. It can remove the particles in the oil, emulsified water and free water. Vacuum oil purifier machine consists of particle filtration system, vacuum dewatering system, heating system, oil drain system and automatic control system.

Particle filtration system --- Three stage filter, coarse filter which is located on suction port protect the pump and extend the life of the main filter. There are two fine filter in the back of pump, make the oil quickly reach high cleanliness. Filter material use special gradient pore glass fiber, it can filter different size particles, greatly improving the filter life. It has perfect filter structure, which can effectively reduce the flow rate of filter material surface, to obtain stable filtration accuracy.

Vacuum dehydration system ---- It consists of vacuum irrigation, vacuum pump, condensate irrigation, air supply system. vacuum dehydration can effectively remove various states of water in the oil, and can remove air and a variety of volatile substances in the oil.

The effect of vacuum water removal is mainly related to working vacuum and oil temperature. The lower the vacuum, the higher the temperature, the better the water removal effect.

Oil temperature is generally about 60 ℃, high temperature will accelerate the oxidation of oil. For hydraulic oil, vacuum is generally 600-700Pa, it can make the water content of oil down to 30ppm or less. For transformer insulating oil, use higher vacuum, a higher degree of vacuum can be used, the water content can be reduced to 10ppm.

Heating system --- step by step heating, the surface heat load is less than 1.0W / cm², will not overheat caused oil deterioration. Oil temperature can be adjusted at 0-100 ℃, automatic control, and set one protection device, when the oil is too small , automatically stop working, and avoid burning caused damage to the heater.

Automatic control system --- ZATA vacuum oil purifier machine uses frequency converter, level transmitter, temperature sensor, vacuum gauge, pressure gauge and a series of automatic control instrumentation equipment to run a variety of information, by the central processor for processing, Automatically controls the operation of the entire plant and monitors the operation of the equipment. The machine has a variety of protection devices (overload protection, overvoltage protection, abnormal operation shutdown protection), to ensure safe operation of equipment.

Dehydrated Transformer Vacuum Oil Purifier Device Turbine Oil Demulsifier Purifier
